Working video :http://v.youku.com/v_show/id_XMzM0MTQ5ODE3Mg==.html?spm=a2h3j.8428770.3416059.1

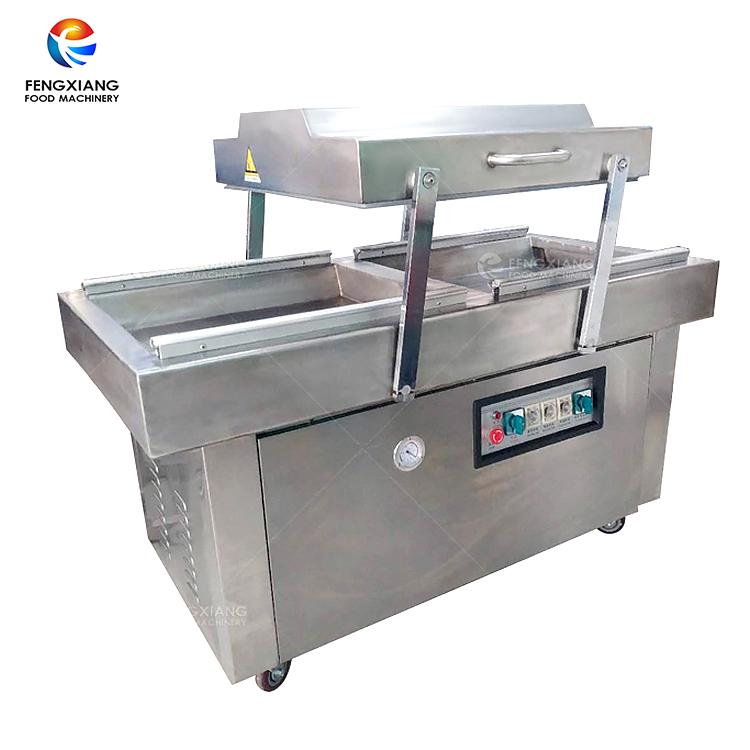

Model: DZ - 600
Product Description:
Flat type vacuum packaging machine production efficiency is high, suitable for (such as: meat cooked food packaging, paste products, bean products, vegetables, seafood processing, food) for vacuum packing, can prevent product oxidation mildew, corruption, moistureproof and prolong the storage life of the product. Can be specially designed for the guest, deepen the chute, facilitate large packing ingredients.
Main Parameters:
Dimension(mm) |
Vacuum Chamber Size |
The Heat Sealing Length and Width |
Pachking Capacity
|
Vacuum Pump Exhaust |
L1420 x W760 x H960 |
L750 x W656 x H100 |
L600 x W10 |
1-3 time/min |
20×3 m³/h
|
Vacuum Pump Motor Power (W) |
Supply Voltage(V/Hz) |
Vacuum Limit |
Heat Sealing Power
|
Net Weight |
Heat Seal |
750×3 w |
AC 380/50 110/60 |
1.0KPa |
1000w
|
360kg |
2 |
